CLA-200 Carpet Lamp Optical Analysis Measurement System
Ultra-high sensitivity and excellent repeatability ensure better testing of automotive projection lamps.
Типичные сценарии применения
EVERFINE CLA-200 Automotive Carpet Lamp Optical Analysis Measurement System is an online optical performance measurement and analysis system designed and developed specifically for quality control during the production process of automotive carpet lamps. The system integrates a precision optical measurement unit, a precision power supply unit, and dedicated optical measurement and control software based on artificial intelligence algorithms. It can quickly and accurately measure and analyze optical performance parameters such as illuminance distribution, brightness distribution, graphic size, edge gradient, and blackness of car carpet lamps. The system is compact in structure, easy to operate, and stable in performance, providing precise, fast, and effective quality assurance for products.
Основные характеристики
1.The system is equipped with a high-precision million-pixel imaging illuminance direct reading system with a linear range of up to 8 orders of magnitude, which can quickly obtain the illuminance distribution of carpet lamps.
2.The system is equipped with dedicated optical analysis software based on artificial intelligence algorithms, which identifies the tested image, calibrates and analyzes the illuminance data, and obtains parameter indicators such as image size, edge gradient, and blackness at the standard distance. The software interface is intuitive, concise, and easy to operate.
3.The system is equipped with a 27-inch LCD display board and a dedicated industrial computer, which is compact in structure and stable in performance.
4.Illuminance Distribution Measurement
The system quickly obtains images and illuminance distribution data of carpet lamps through a high-precision imaging illuminance direct reading system. The dedicated optical measurement and control software based on artificial intelligence algorithms accurately calibrates and analyzes the data.
5.Illuminance Distribution Measurement Judgment
Users define the test position of the illuminance point, and the system detects each feature illuminance point and determines the pass/fail based on the user-set threshold.
6.Edge Gradient Testing
The intelligent algorithm analyzes the obtained illuminance data and can detect the edge gradient on the feature line, and determine the pass/fail based on the user-set threshold.
7.Other Testing Items
Based on actual testing needs, the professional optical measurement and control software based on artificial intelligence algorithms can also achieve functions including blackness testing and image size testing, helping users to quickly and accurately grasp product quality from all aspects.
8.System Data Management
The system supports report generation and export, as well as data export and viewing of historical data.

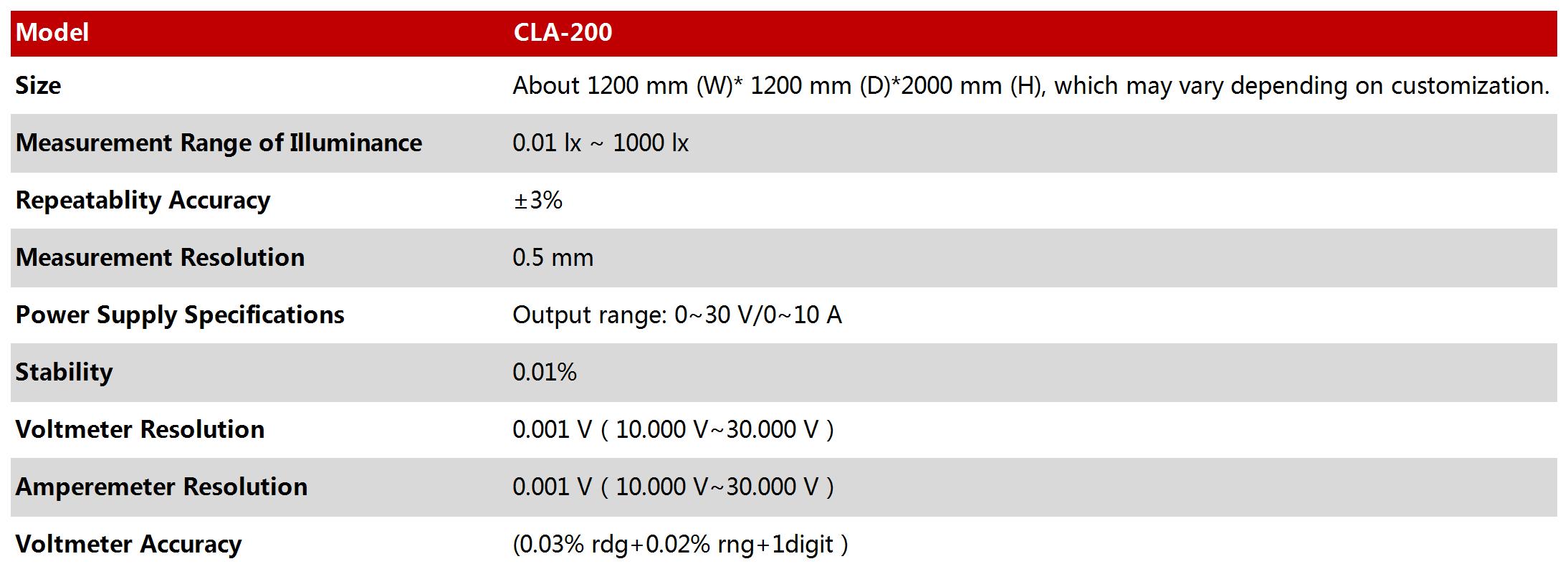

Технические характеристики
