TLS-50 Spectrally Tunable Light Source
simulate output 380-1000nm any spectrum
Типичные сценарии применения

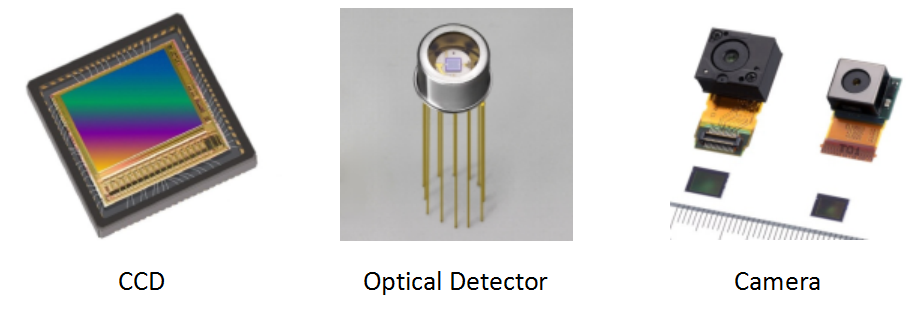

TLS-50 Spectrally tunable light Source simulates a wide range of typical indoor and outdoor light sources and automatically adjusts luminance or illuminance over a wide dynamic range. It is suitable for calibration and measurement of ambient light sensor and infrared proximity sensor, as well as measurement and calibration of dynamic range, flat field, luminance, chrominance and other characteristics of imaging luminance meter.
Основные характеристики
1.Multi spectrum adjustable, simulating multiple spectra
TLS-50 adopts multi-channel LED combination to accurately simulate and realize typical indoor and outdoor light sources. The light source has fast response and long life.
2.High stability and good uniformity
The built-in integrating sphere adopts EVERFINE patented diffuse reflection coating, built-in monitoring detector, real-time monitoring feedback, higher stability, and good uniformity of the luminous surface.
3.Monitoring and self-calibration
The system is equipped with photometric and spectral detectors, and users can obtain real-time luminance and spectral output; The built-in feedback system, with self-calibration function, controls the output of each LED through spectral feedback, which can be used to measure and correct changes caused by environmental conditions and long-term testing to ensure the long-term stability and best performance of the light source
4.High luminance/illuminance output
The illuminance of the light emitting surface is automatically adjustable, and the maximum illuminance can reach 10000lx.

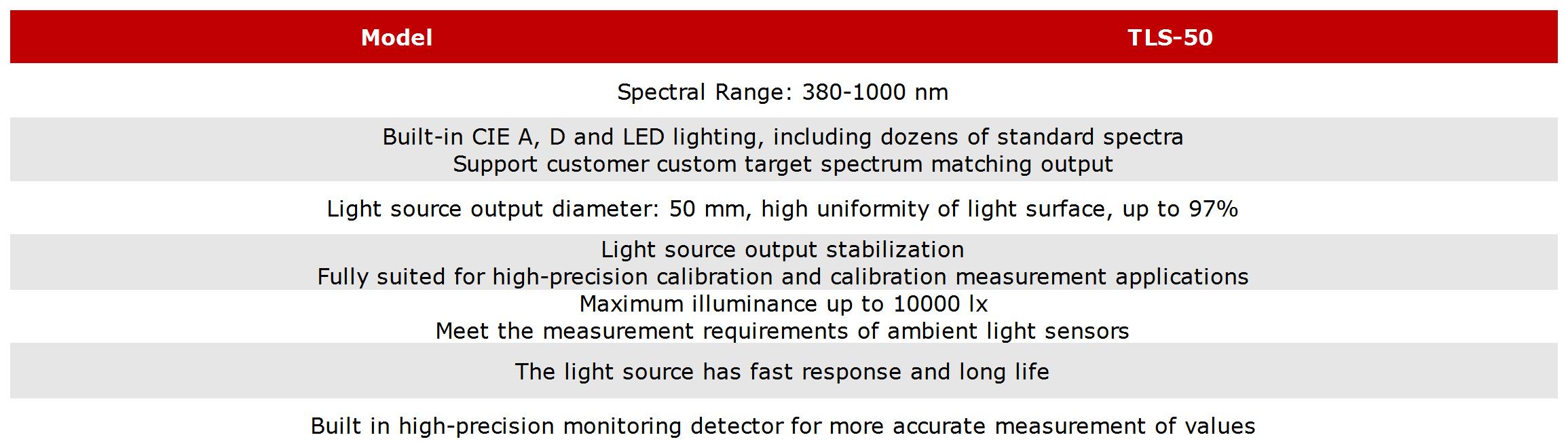

Технические характеристики
